In the world of high-performance electronics, managing heat is not just a requirement, it is a necessity. Whether you are designing power electronics, laser systems, or medical devices, keeping components cool ensures reliability and longevity.
While complex machined or friction stir welded (FSW) cold plates often steal the spotlight, there is a reliable, cost-effective workhorse that engineers frequently turn to: the Copper Tube Liquid Cold Plate.
At Xuyuan Precision, we understand that not every project requires the most complex internal channel structures. Sometimes, the best solution is one that balances performance, weight, and cost. Here is why copper tube cold plates are a strategic choice for your next thermal management project.
? What is a Copper Tube Liquid Cold Plate?

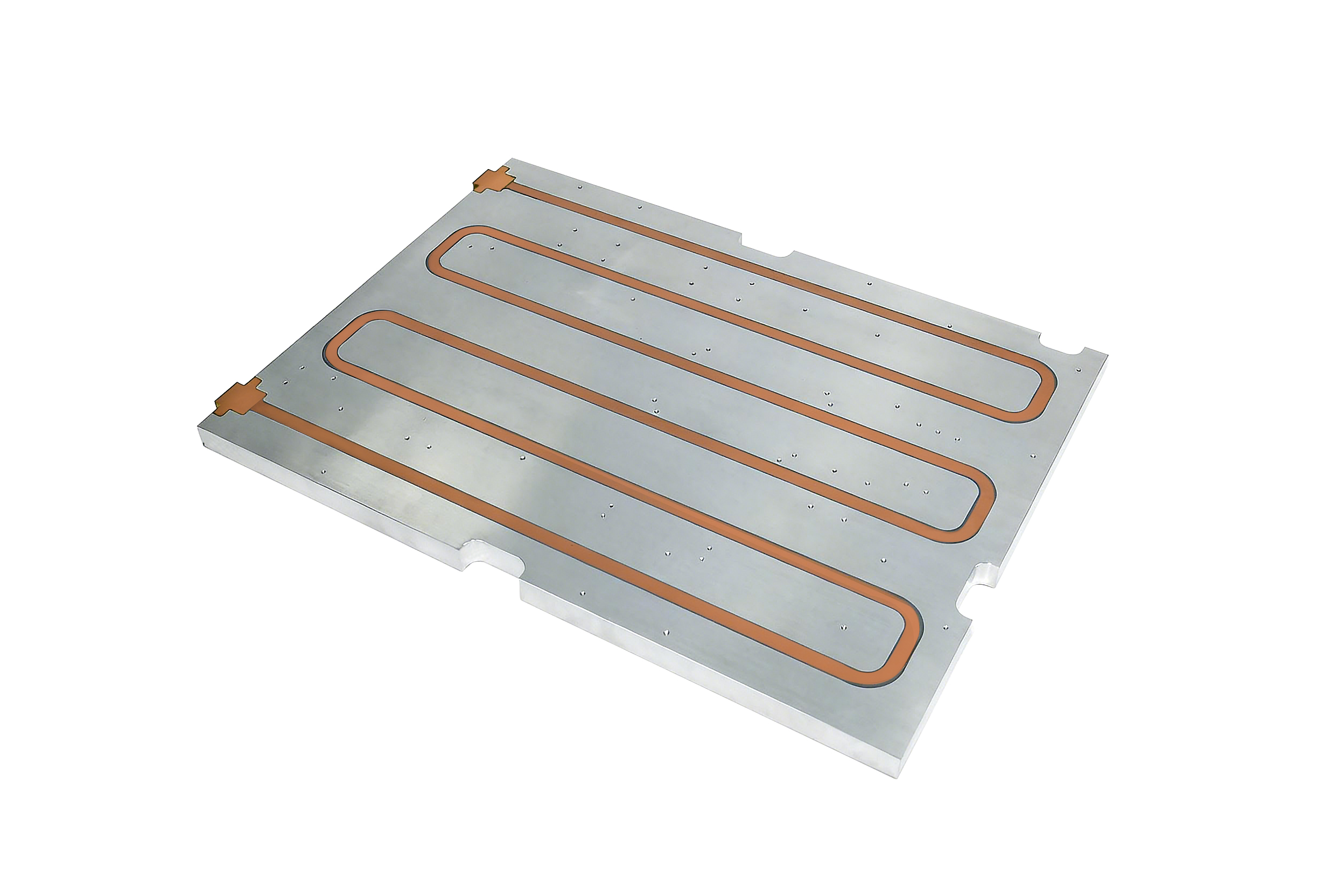

The concept is elegantly simple but highly effective. A copper tube cold plate consists of a formed copper tube embedded into a metal base plate (typically aluminum).
The Tube: Carries the coolant through a designed route (serpentine or custom path).
The Base: Usually aluminum, providing mechanical support and spreading heat from the device to the tube.
In this design, the coolant flows strictly inside the copper tube. This separates the fluid path from the base plate, offering distinct advantages over designs where coolant flows directly through channels machined into the base.
! Why Choose Copper Tube Technology?
Why do so many industries, from renewable energy to communications, rely on this structure? It comes down to five key benefits:
1. Superior Cost-Effectiveness
For projects with moderate heat loads, a copper tube cold plate is often more economical than a fully machined or brazed alternative. By avoiding complex internal CNC machining and cover plate sealing, we can reduce manufacturing time and cost without sacrificing reliability.
2. Enhanced Corrosion Control
One of the strongest arguments for this design is material compatibility. By keeping the coolant inside a copper tube, you isolate the fluid from the aluminum base plate. This is crucial for systems where aluminum-coolant compatibility is a concern, effectively managing corrosion risks while still utilizing lightweight aluminum for the structure.
3. Reliability and Leak Resistance
A continuous copper tube significantly reduces the number of internal joints. Fewer internal joints mean fewer potential leak points. When combined with high-quality port connections and rigorous pressure testing, this structure offers a robust solution for critical applications.
4. Optimized Weight-to-Performance Ratio
Using an aluminum base with an embedded copper tube allows engineers to balance the high thermal conductivity of copper with the lightweight, cost-effective nature of aluminum. This is ideal for applications where every gram counts.
5. Flexible Routing
Copper tubes can be bent into custom paths to match specific heat source layouts. While there are limits to bending radius, this flexibility allows for targeted cooling of distributed heat sources, such as power modules or laser bars.
Comparison: Is This the Right Fit for You?
Copper tube cold plates are powerful, but they are not a “one size fits all” solution. They excel in specific scenarios.
表格
| Feature | Copper Tube Cold Plate | Machined/FSW Cold Plate |
|---|---|---|
| Best Application | Distributed heat loads, moderate flux | Highly localized hot spots, extreme flux |
| Cost | Lower (Simpler manufacturing) | Higher (Complex machining/welding) |
| Complexity | Moderate (Limited by bend radius) | High (Complex internal geometries) |
| Internal Surface | Smooth tube walls | Can include micro-fins for turbulence |
The Verdict: If your heat source is distributed and you need a reliable, continuous cooling path without the budget for complex internal fin structures, the copper tube design is likely your best option.
Typical Applications
At Xuyuan Precision, we see copper tube cold plates successfully deployed in a variety of sectors:
- • Industrial Power Electronics
- • Laser Systems
- • Medical Devices
- • Renewable Energy
- • Communication Equipment
Partner with Xuyuan Precision
Designing a copper tube cold plate requires more than just bending a pipe. It requires precise calculation of tube-to-base contact, groove machining accuracy, and thermal bonding consistency. A poorly seated tube can lead to air gaps and thermal resistance, negating the benefits of the copper.
At Xuyuan Precision, we don’t just manufacture parts; we engineer thermal solutions. We ensure:
- ✓ Tight Tolerances: Precision grooving to maximize tube contact.
- ✓ Rigorous Testing: 100% leak and pressure testing to guarantee integrity.
- ✓ Custom Routing: Designs optimized for your specific heat map.
Are you looking for a reliable, cost-effective thermal management solution? Xuyuan Precision can review your drawings, heat load, coolant conditions and pressure requirements to evaluate whether cold plated are suitable for your application.
