As power electronics continue to push the boundaries of power density, traditional air-cooling systems are reaching their physical limits. Modern high-performance applications—ranging from electric vehicles (EVs) and 5G telecommunications to server data centers and medical devices—demand thermal management solutions that are both highly efficient and exceptionally reliable.
Enter the vacuum brazed liquid cold plate, the gold standard in modern liquid cooling technology.
At Xuyuan Precision, we specialize in engineering and manufacturing high-precision thermal components. In this comprehensive guide, we will explore what vacuum brazing is, why it is superior to other metal-joining methods, and how vacuum brazed liquid cold plates can revolutionize your next project.
What is Vacuum Brazing?

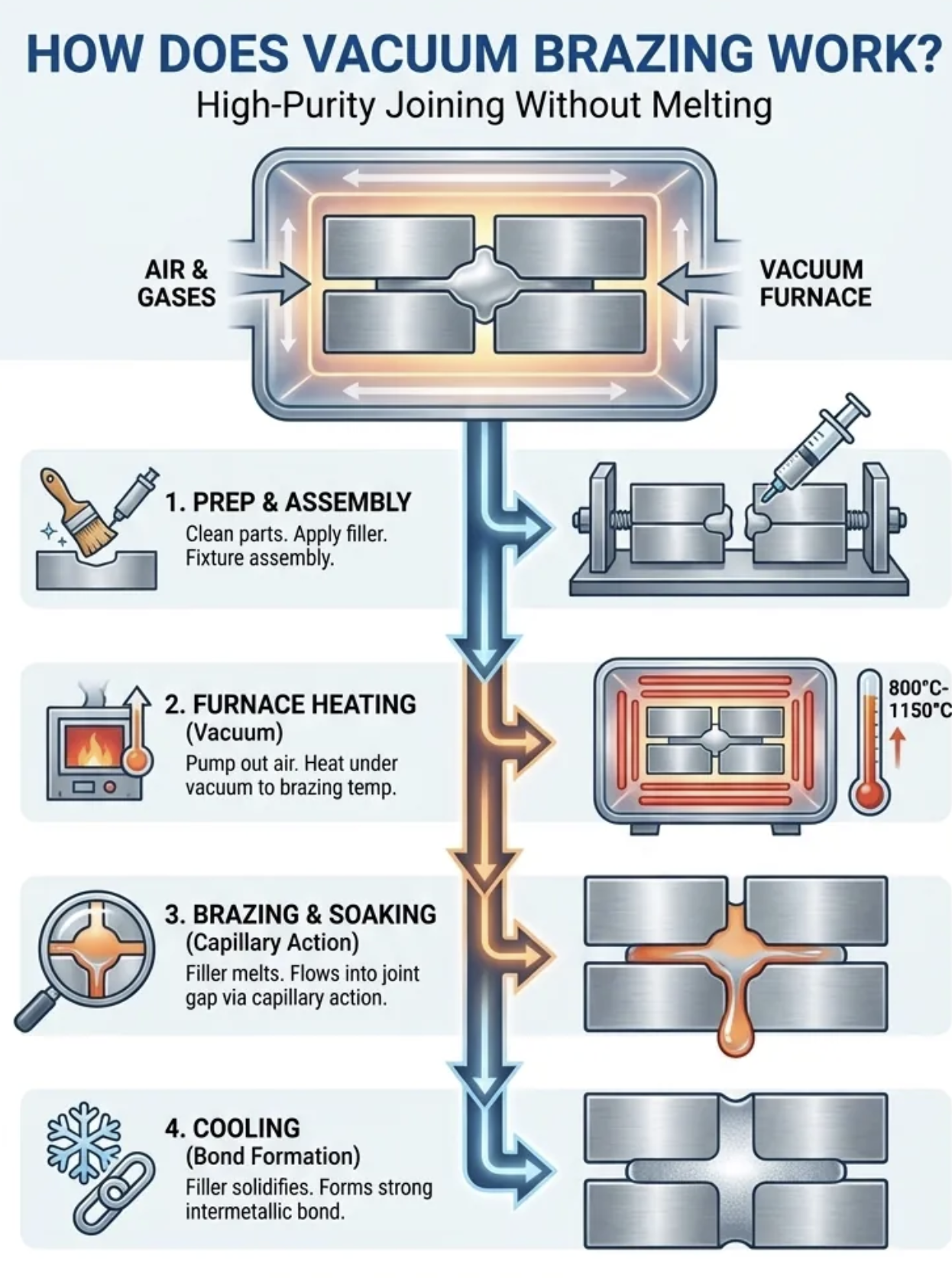

At its core, brazing is a metallurgical process used to join two or more metal components (such as aluminum or copper plates) by melting a filler metal (also known as a brazing alloy). Crucially, this filler metal has a melting point well below that of the base metals being joined.

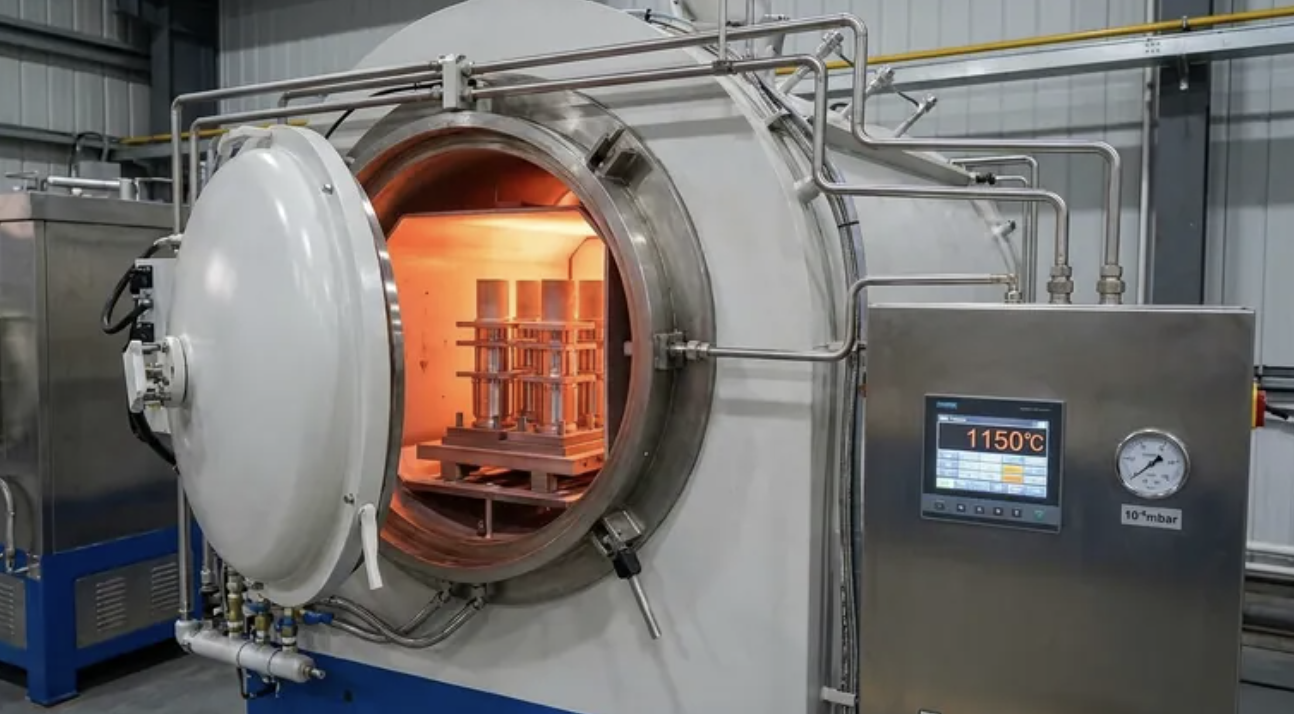

Unlike traditional welding, vacuum brazing takes place inside a specialized vacuum furnace. By removing oxygen and contaminants from the environment, this high-end joining technology creates exceptionally strong joints without using corrosive flux.
Why Choose Vacuum Brazing? (The Key Benefits)
Zero Distortion, Tight Tolerances
Because brazing does not melt the base metal, there is no risk of structural deformation. Furthermore, the vacuum furnace ensures uniform heating and cooling across the entire part, minimizing distortion.
No Corrosive Flux Residue
Vacuum brazing operates in a high-vacuum environment, eliminating the need for flux completely. This results in zero post-cleaning processes and a completely corrosion-free internal structure.
Hermetically Sealed Bonds
The capillary action of the molten filler metal creates a continuous, seam-free joint. This guarantees a leak-free product capable of operating under high pressure.
Exceptional Repeatability
Advanced vacuum furnaces rely on digital control of critical parameters. This ensures that every production batch meets the exact same rigorous standards.Design Flexibility & Internal Fin Structures
Every thermal challenge is unique. Vacuum brazed liquid cold plates provide engineers with the greatest degree of freedom to customize critical criteria, including thermal resistance, fluid path, pressure drop, size, shape, material hardness, and surface geometry.
- • Machined Fins: High-precision channels cut directly into the base plate for precise flow path control.
- • Folded Fins / Stamped Fins: Corrugated fin structures that maximize surface area in a compact volume.
- • Extruded Fins: Cost-effective, high-performing options suited for specific linear flow patterns.
Additionally, because the vacuum brazing process secures the entire assembly simultaneously, designers can easily engineer double-sided mounting capabilities, allowing power components to be mounted on both the top and bottom of the plate for maximum space savings.
Technical Specifications & Construction
At Xuyuan Precision, our liquid-cooled cold plates are engineered to meet the industry’s most demanding applications.
| Feature | Specification Details |
|---|---|
| Material Options | Aluminum: AL6061, AL6063 Copper: C101, C102, C110, C145 |
| Internal Fin Structure | Machined, Folded Fin, Stamped Fin, Extruded Fins |
| Brazing Standards | Copper: AWS C3.6M/C3.6: CLASS C Aluminum: AWS C3.7M/C3.7: CLASS C |
| Diverse Coolants | Water, Water/Glycol solutions, Dielectric fluids, Oils, and Synthetic hydrocarbons (PAO) |
High-Reliability Applications
Thanks to the robust integrity of vacuum-brazed joints, these cold plates are deployed in mission-critical applications where thermal failure is not an option. Key applications include:
High-performance power electronics & IGBT modules
Critical micro-channel cooling devices
Heavy-duty industrial radiators
Military and aerospace microwave antennas & waveguides
Partner with Xuyuan Precision
With years of experience in designing and manufacturing high-precision aluminum and copper vacuum brazed cold plates, Xuyuan Precision guarantees seamless joints, high robustness, and elite thermal performance.
Whether you need a custom-engineered prototype or high-volume production, our team is equipped to deliver leak-free reliability that meets your exact thermal and mechanical requirements.
Ready to optimize your thermal management system?
[Send drawings to jason@xyjmrk.cn]
Speak with one of our thermal design specialists and request a custom quote.
